IMX104LQJ CMOS image sensor for industrial applications has 1.37MP resolution and 3.75um pixels. Its frame rate is 120fps at 10b ADC resolution or 60fps at 12b resolution. The sensor is said to provide 12dB higher SNR than existing Sony products. Its low light sensitivity is better, in comparison with IMX035LQR
with slightly smaller 3.63um pixels:
 |
| Low-light Picture Quality (in all-pixel scan and 12-bit A/D conversion mode, 30fps, 0.1 lx, 42dB with built-in PGA +12dB in rear end, at F2.0) |
IMX136LQJ (color) and the IMX136LLJ (black and white) industrial CMOS image sensors feature that same 120fps/10b and 60fps/12b speed but at 2.38MP resolution. The pixel size is 2.8um to maintain almost the same 1/3-inch optical format. They also support the multiple frame HDR mode. In this mode, separate

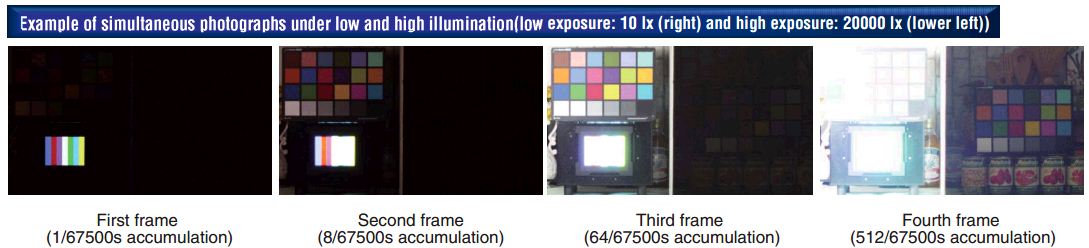

exposure time and gain can be set in advance for 4 or 2 consecutive frames and sets of 4 or 2 frames can be set as a shooting condition to automatically output consecutive images:
Sony also talks more about its image sensor stacking technology: "Sony's Stacked CMOS Image Sensor Solves All Existing Problems in One Stroke".
"Digital still cameras mainly use Type 1/2.3 CMOS image sensors. If the 45 nm process rule can be used for the circuit section, it will become possible to implement signal processing circuits that equal the DSPs used in high-end digital still cameras. And even the 65 nm rule will make possible signal processing for middle class digital still cameras.
Type 1/3.2 image sensor processed according to the 65 nm rule could be incorporated in a surveillance camera. And if the 45 nm rule were used, it would enable integration of a signal processing circuit large enough for middle class digital still cameras.
Secondly, how can the surface area be reduced by completely separating the pixel section from the circuit section?
Sony's Type 1/4 CMOS image sensors can then be reduced by 30% and SoC CMOS image sensors for mobile phones with camera signal processing capability can be reduced by 40%. Although CMOS sensors are generally thought to be larger than CCD image sensors, stacked CMOS image sensors do not need any registers and can therefore be 20% smaller. The configuration of the sensor makes it ideal for use in medical cameras and other industrial applications."
Stacked image sensor products with RGB-W CFA and HDR functions are planned for shipment:
- Type 1/3.06 stacked CMOS image sensor with approx. 13.0M effective pixels
Sample shipments planned for June, 2012 - Type 1/4 stacked CMOS image sensor with approx. 8.0M effective pixels
Sample shipments planned for August, 2012
The stacked CMOS image sensor with RGB-W and HDR functions do not require to change the signal processing of the in system, meaning the stacked processor translates output signals to some standard format.
